MANUAL SYSTEMS FOR SLIDING DOORS

of a maximum door weight of 150 kg


Reference : 3400


FERMATIC SYSTEM (Patented)

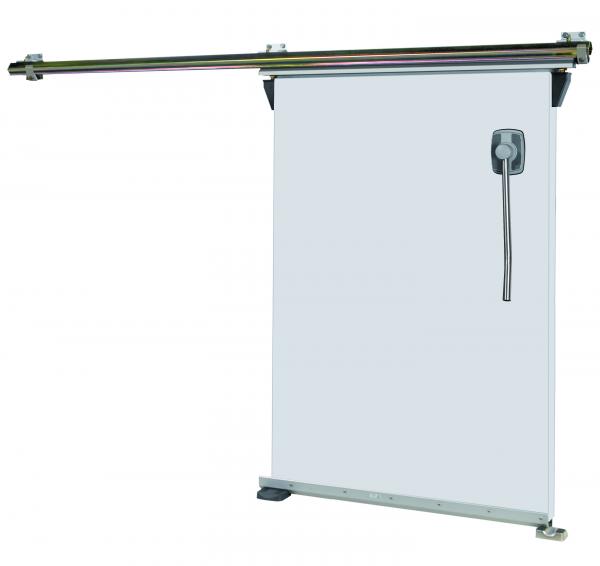

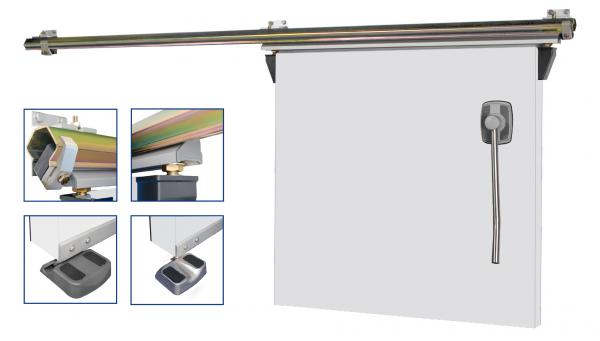

The mobile part of the Fermatic system 3430 is located
inside the track which also acts as a cover and simplifies
the maintenance.
Systems 3430, 3530 and 7530 are interchangeable.

- The rails are made of zinc-bichromated Steel (20 Microns)
- The mobile parts are made of Anodized Aluminium (Duralinox)

Features and advantages:
- Pleasing appearance and excellent hygiene properties are achieved by the rail concealing the mechanical components
- Robustness
- Top quality sealing
- Easy mounting and adjustements
- Easy stocking due to symetrical design (right or left hand)
- Easy and smooth operation
- Minimum overlap on top of the door
- The special gasket remains soft down to - 40 degrees C
- Products in accordance to the European Directives and Standards

ACCESSORIES:
- Internal and external lever handles, face or edge-fixing

Edge fixing external 8730 - internal 8530
Edge fixing external 3530/7530
Fixed internal 8520
Edge fixing external and internal 6200


- Gaskets:

Frame gasket 8511 - Fixing strips 3312 3314
Floor gasket 3350 - Fixing strip 3362



OPTIONS:
- Automatic Kit (Ask for detailed literature)

5010 Electronic automatic kit
3580 - 7580 Electro mechanical automatic kit


- Wall guiding system

Wall guiding system 7540


- Lock

57 - 57HP with internal unlocking
37 with internal unlocking



ReferencesDoor width
3431840 to 1140
34321141 to 1440 mm
34331441 to 1740 mm
34341741 to 2040 mm
34352041 to 2340 mm
34362341 to 2640 mm
