Modular shelving system

with solid polymer removable shelf inserts


Reference : 6622

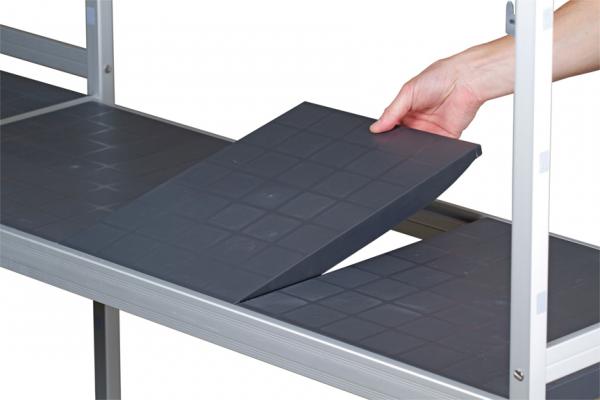

Modular shelving system with solid polymer removable shelf inserts

Download

Storage system for dry goods, kitchen, laundry and dishwashing area.
Assembly is through conic metal clamps manufactured in anodized aluminium ensuring extremely stable units.
The 6622 FERMOSTOCK can be installed in singular units or combinations allowing a number of configurations including « L », « U », « T », and « + » layouts.
This system allows one person to carry out the installation quickly and efficiently without the need of tools.

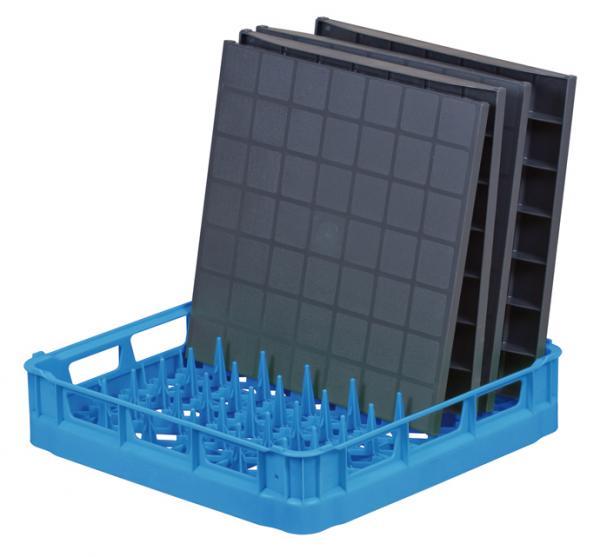

Each polymer insert is dishwasher safe (maxi + 100°C).
A mix of FERMOSTOCK 6622 and FERMOSTOCK 6611, 6811, 6811/B shelves is possible.
The 6622 FERMOSTOCK offers the solutions in space management ensuring maximum use of available storage area through combinations of its standards units. We offer the facility for self design through our Fermostock layout and costing program available on request.

- 4 heights of uprights: 1685, 1800, 2100 and 2400 mm
- 2 depths: 460, 560* mm
- 10 lengths: 660, 780, 900, 960, 1080, 1200, 1320, 1500, 1620, 1740 mm
*Dimension to receive Gastronorm trays


DOWNLOAD


Request for quotation / Order FERMOSTOCK shelving (PDF)

1) Click on the link above : when the form opens in the browser, save it to your computer (Adobe Reader required : download here)
2) Onto the computer, open the form and complete it
3) Save the completed form to your computer
4) Send the form as an E-Mail attachment to: contact@fermod.com
or print the form and fax it to 01 42 86 84 51

Fermostock 6622 Documentation (PDF version)

Fermostock 6622 Technical Description (Word version)

Fermostock 6622 Technical Description (PDF version)

Exploded View-Technical Description Fermostock 6622 (PDF version)

Label holder Documentation (PDF version)

Collecting containers Documentation (PDF version)

Fermostock fixing options Documentation (PDF version)

Fermostock 6622 NSF Certification (PDF version)
Loading per shelf level (for evenly distributed load)
Bay length (mm)660 / 780 / 900 / 960 / 1080 / 1200 / 1320 / 150016201740
Fermostock 6622 (kg)200120120
