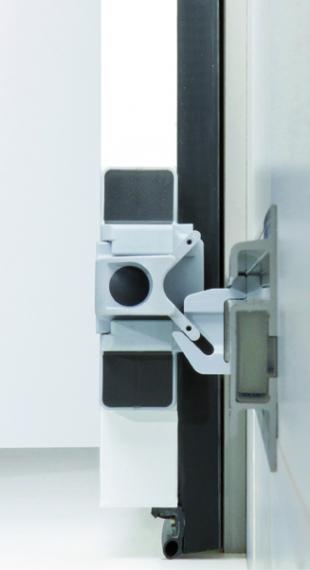

Wall guiding system 7540

For positive or negative temperature sliding door systems


Reference : Wall guiding system 7540




The wall guiding system has been developed for positive or negative temperature FERMATIC manual sliding door systems:

- Manual Fermatic system 2120*
- Manual Fermatic system 2130DV
- Manual Fermatic system 2150
- Manual Fermatic system 2420
- Manual Fermatic system 3430
- Manual Fermatic system 3530 (and 3530DV)
- Manual Fermatic system 7530
- Manual Fermatic system 8730

*Fermatic 2120: for minimum door thickness of 75mm

Features and advantages:

This system is reliable and efficient without mechanical parts (roller, axes, spring...).
In case of impact the door can disengage from the guiding rail without damage.
A single reference for both opening sides.
Available for 3 frame offsets: 15/25, 26/36 and 37/47mm
Positioned towards the bottom of the wall, the mechanism ensures smooth guiding during operation as well as good compression against the wall when closed (right or left opening).
With its simple design, the wall guiding system uses the same principle as the floor guiding system but without any floor fixings. This allows the installation of the door even if the floor is not finished.
The parts fixed on the door are adjustable to ensure a perfect sealing of the door.
It can be installed in place of the floor guiding system.

Option:
M12 composite through screws to fix the guiding rail on the wall.
