AUTOMATIC FASTENER 1 POINT

with punch action internal safety device


Reference : 620 - 621


For hinged-doors:
- rebated doors: from 27 to 42 mm (incl. gasket)
- semi-overlapping doors: offset 42 mm maxi
- overlapping doors

620: standard version
621: locking version

Adjustable strike for 3 dimensions
Invisible and tamperproof screws, when door closed
Interchangeable for left or right hand doors

Finish:
- enamelled for housing and strike
- grey hammered finish for handle

Options:
- internal antipanic release

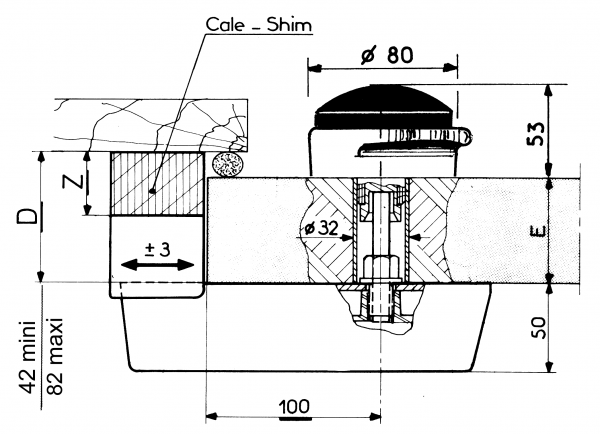

- 3 strikes shims anodized:
Height (Z)
15 mm: for 42 to 57 mm offset (D)
30 mm: for 57 to 72 mm offset (D)
40 mm: for 67 to 82 mm offset (D)
5 special shims for strike: for 77 to 152 mm offset (D).
Ref.620621
Weight2130 g2320 g
Number of screws99
Dim. of screws6 mm6 mm
