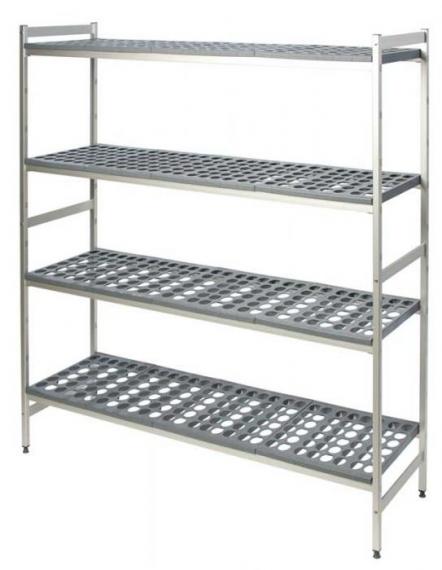

Modular shelving system

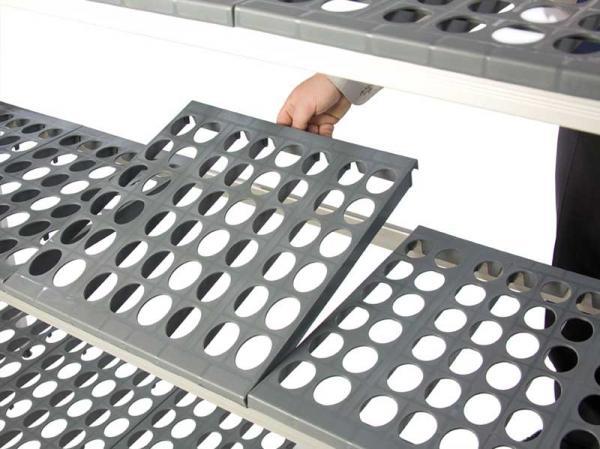

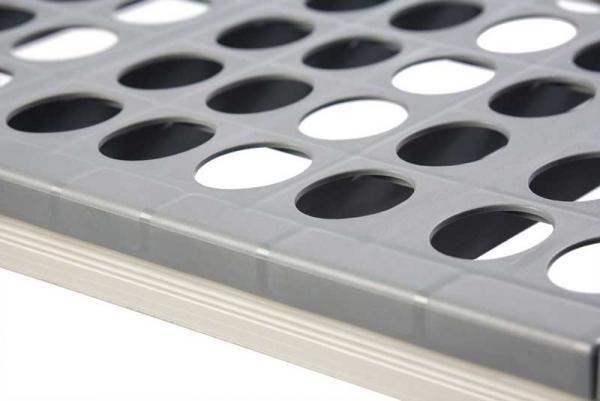

with polymer removable shelf inserts


Reference : 5611


Static modular shelving system

Download

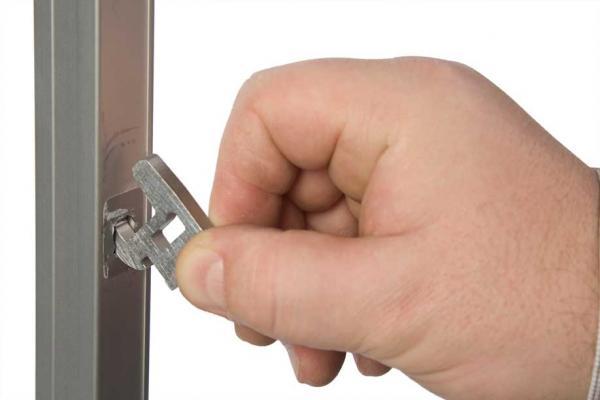

Assembly is through conic metal clips manufactured in anodized aluminium, and with the famous system patented uprights/horizontal shelf rails.
The 5611 Fermostock can be installed in single units or combinations allowing a number of configurations including « L », « U », « T », and « + » layouts.
This system allows one person to carry out the installation quickly and efficiently without the need of tools.
The 5611 FERMOSTOCK is designed for the food industry and conforms to the construction and regulations ensuring the highest hygienic standards. Each polymer insert is dishwasher safe (+ 100°C maxi).
FERMOSTOCK offers the solutions in space management ensuring maximum use of available storage area through combinations of its standards units. We offer the facility for self design through our Fermostock layout and costing program available on request.
Using temperature : - 40°C to + 80°C.

Available sizes:
2 heights of upright: 1685 mm or 1800 mm
2 depths: 360 mm*, 460 mm
8 lengths: 650, 770, 890, 950, 1070, 1190, 1310, 1490 mm
1 version ref. 5611: polymer removable shelf insert
* Dimension to receive Gastronorm trays

Maximum weight loading: 90 kg/level
450 kg between 2 uprights and 360 kg between 2 uprights with angle configuration



DOWNLOAD


Request for cotation / Order FERMOSTOCK shelving (PDF)

1) Click on the link above : when the form opens in the browser, save it to your computer (Adobe Reader XI required : download here)
2) Onto the computer, open the form and complete it
3) Save the completed form to your computer
4) Send the form as an E-Mail attachment to: contact@fermod.com
or print the form and fax it to 01 42 86 84 51

Fermostock 5611 Documentation (PDF version)

Fermostock 5611 Technical Description (Word version)

Fermostock 5611 Technical Description (PDF version)

Fermostock NSF Certification (PDF version)

Technische Beschreibung Fermostock 5611 (PDF)

Technische Beschreibung Fermostock 5611 (WORD)
