Fermoclean 2920
Click to enlarge image
Fermoclean 2920Fermoclean 2920Fermoclean 2920Fermoclean 2920Fermoclean 2920Fermoclean 2920
Fermoclean 2920Fermoclean 2920Fermoclean 2920Fermoclean 2920Gasket  2911Gasket  2911
Gasket 2950Gasket 2950

 Download drawing A 2920
 Download drawing B 2920

<< Return

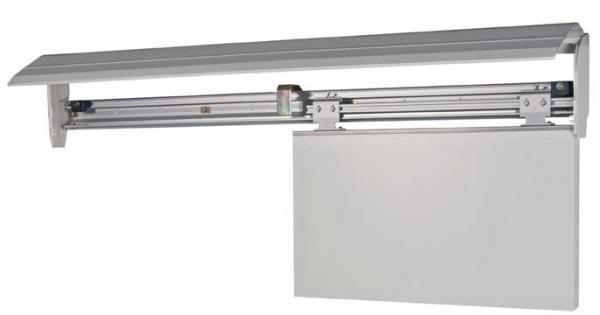

Manual systems for sliding doors

up to 130 kg or 180 kg for clean environment


Reference : FERMOCLEAN 2920


SYSTEM PATENDED
Features and advantages:
- For doors of 40mm to 60mm door thickness, with frame thickness up to 10mm

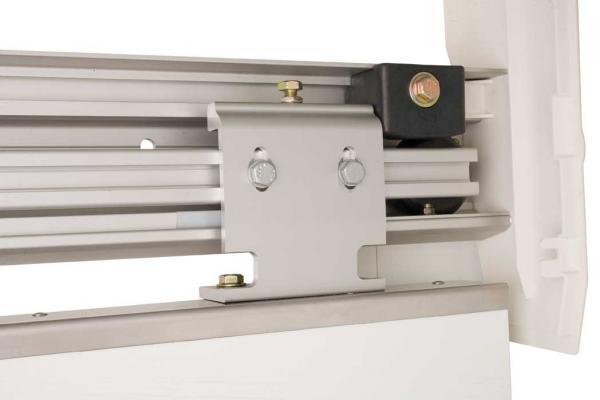

- Compact dimensions. The track is fixed directly on the frame and ramps and stops are integrated in.
- Articulated aluminium cover with adapted design for clean rooms application and to receive, without any modification, an automatic kit. Color RAL 9010.
- Through use of an anti-derailment feature safety is
maximised

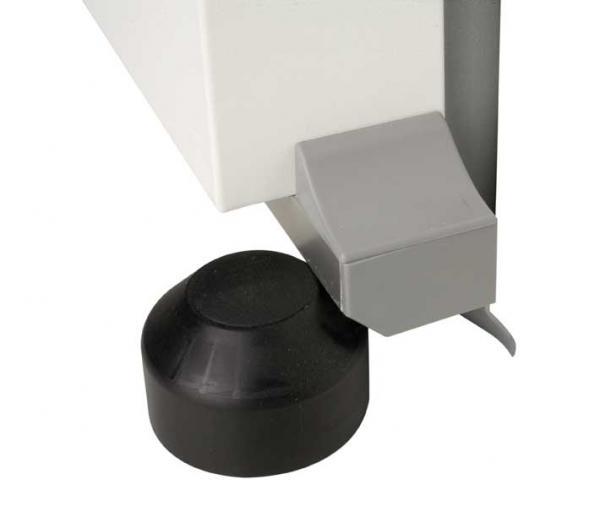

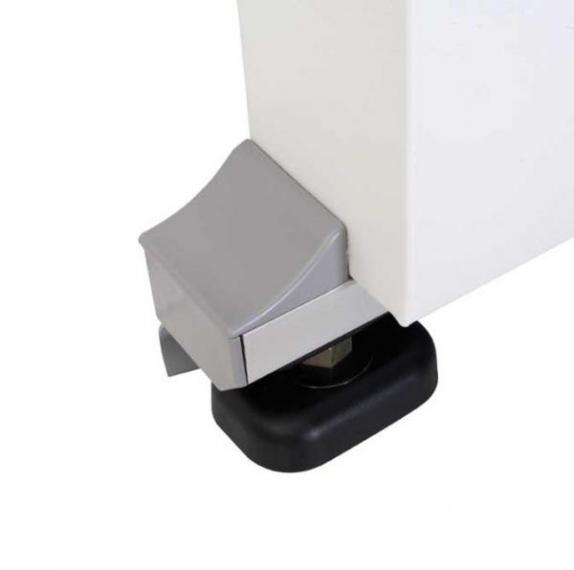

- Bottom guide rail fixed on the underside of the door
- The rail is easy to mount and requires minimum
maintenance
- Smooth & silent operation
- Products in accordance to the European Directives and Standards

ACCESSORIES:
- External lever handles, edge-fixing
- External and internal fixed handle
- Simple gasket, light grey color

GREY EPDM GASKET (-45°C)

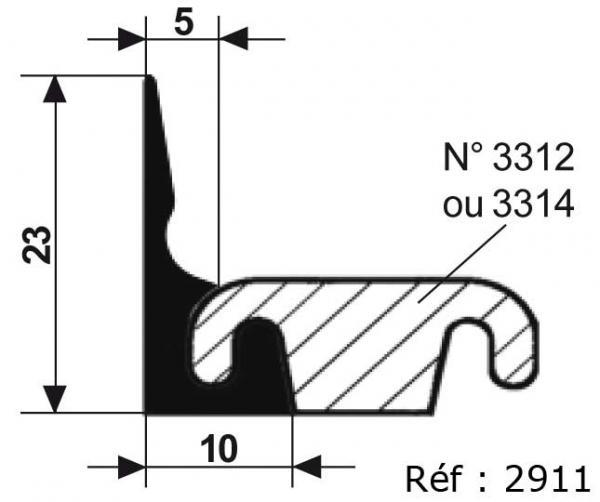

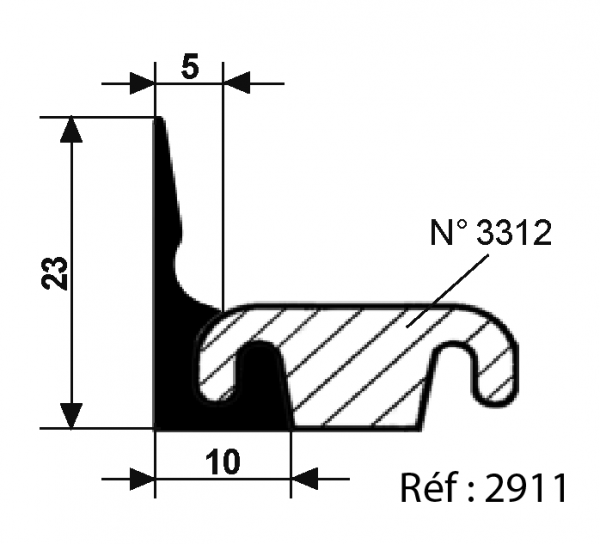

Ref. 2911: delivered in 24 m lengths
45 shores
+50°C / -45°C

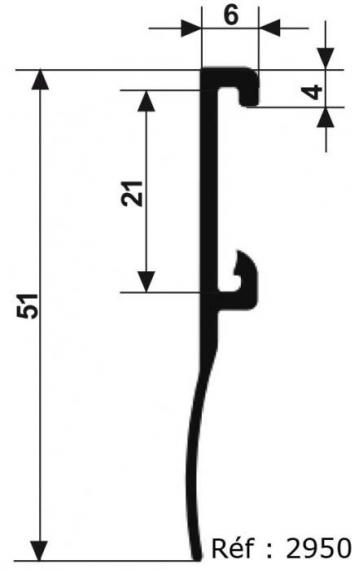

Ref. 2950: delivered in 24 m lengths
65 shores
+50°C / -45°C
Fixing strip:
Ref. 3312: 2,5 m
Ref. 3314: 2,5 m



OPTIONS:
- Automatic Kit *

Electronic Automatic Kit 2990


- Two door leaves system *
* Ask for detailed literature
ReferencesDoor width
2921900 1100 mm
29221101 1300 mm
29231301 1500 mm
29241501 1700 mm
29251701 2000 mm
29262001 2300 mm
29272301 2600 mm
